Product Overview

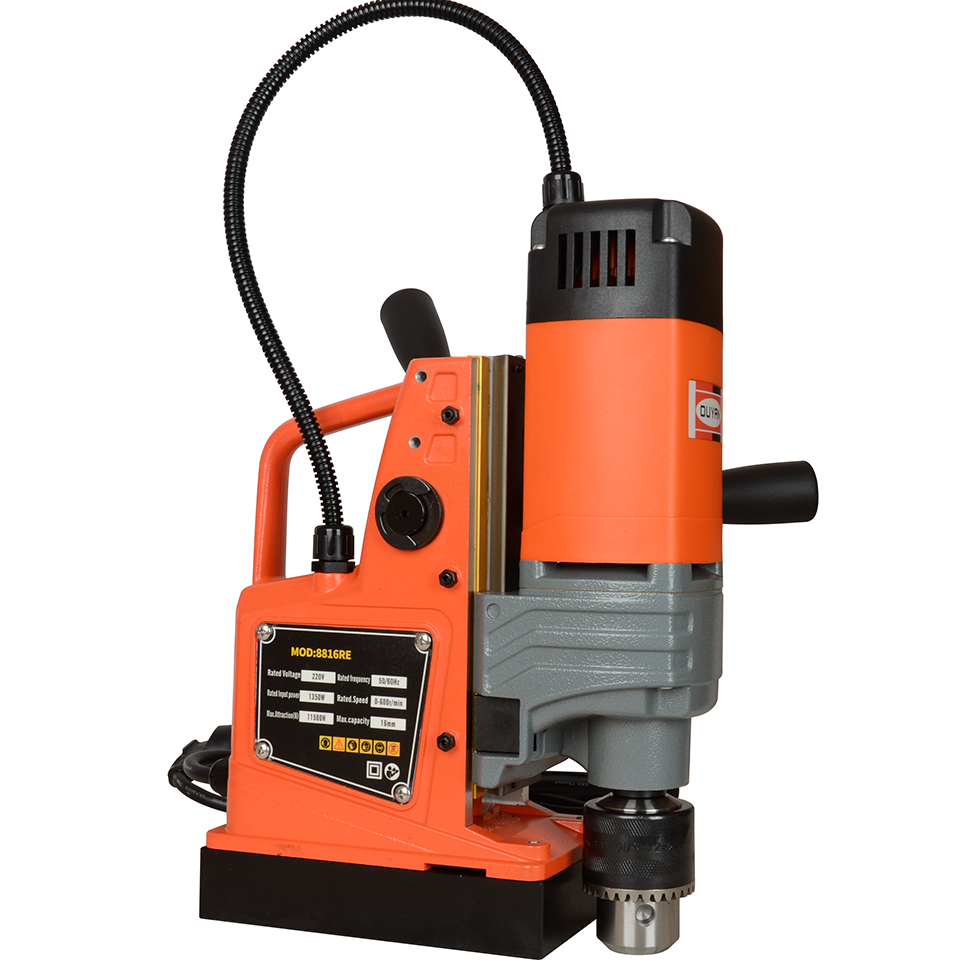

The DASHUO DS Series Magnetic Drill Press (also widely known as mag drill, portable magnetic drilling machine, annular cutter drill, core drill, steel plate drill, magnetic base drill, tapping mag drill) is a professional industrial-grade metalworking equipment, specially engineered for 3 core functions: drilling, coring and tapping. We provide a full range of models to meet different processing needs: from the lightweight DS13 series for small-hole precision drilling, to the medium-duty DS16 series, and the heavy-duty DS60 series for large-hole heavy-load processing.

All models are equipped with industrial-grade full-copper motors, high-strength rare-earth permanent magnetic bases, and precision feed structures. They are universally compatible with standard twist drills, annular cutters, and tapping accessories, delivering stable performance, high drilling accuracy, and excellent portability. Whether for fixed workshop machining, on-site construction, high-altitude operations, or equipment maintenance, it is the ideal cost-effective drilling solution for metalworking professionals, steel fabricators, and engineering teams worldwide.

Core Advantages & Detailed Product Features

1. Industrial-Grade Full-Copper Motor, High Efficiency & Overload Resistance

All DS series magnetic drills are equipped with heavy-duty pure copper winding motors, with power ranging from 1000W to 1800W, featuring high power density, strong overload resistance and excellent thermal stability.

• Optimized low-speed and high-torque design, perfectly matched with the cutting characteristics of twist drills and annular cutters. The drilling efficiency is 3-5 times higher than that of ordinary hand electric drills, greatly reducing single-hole processing time and improving work efficiency.
• The E/RE upgraded models are equipped with a precision electronic stepless speed regulation system, which can freely adjust the optimal rotation speed according to the workpiece material, drill bit type and aperture size, achieving the best cutting effect, extending tool life and improving hole quality.
• The RE tapping models are equipped with forward & reverse rotation function, perfectly realizing internal thread tapping operation, one machine for multiple purposes, no need for additional tapping equipment.
• Built-in overheat, overcurrent and overload triple protection system, which automatically cuts off the power when the motor is overloaded or overheated, protecting the equipment from damage and extending the service life of the whole machine.

2. Super-Strong Rare-Earth Permanent Magnetic Base, Ultra-Stable & Safe

• Adopts high-performance NdFeB rare-earth permanent magnet, with a maximum suction force of up to 11000N-15000N (matched to different models). It provides super-strong and stable adsorption on steel workpieces, ensuring no slipping, no displacement during high-load drilling operations, and can work stably in vertical, horizontal and even overhead upside-down working conditions.
• The bottom surface of the magnetic base is precision ground with ultra-high flatness, which can be closely attached to the workpiece surface, ensuring maximum adsorption force and drilling stability even on slightly uneven steel plates.
• Independent magnetic base control switch, with clear identification and anti-misoperation design. The magnetic base maintains strong suction even in case of sudden power failure, effectively preventing the equipment from falling, which greatly improves the safety of on-site and high-altitude operations.

3. Precision Feed Structure, Ultra-High Drilling Accuracy

• Adopts high-precision dovetail guide rail structure, after overall quenching and precision grinding treatment, with small clearance, super wear resistance and ultra-smooth feed. It ensures excellent concentricity during the whole drilling process, completely avoiding hole deviation and aperture error, meeting the high-precision machining requirements of industrial scenarios.
• Ergonomic three-handle feed design, with non-slip insulated rubber handles, comfortable grip, labor-saving operation, and precise control of micro feed speed, which can be easily operated by a single person, reducing operator fatigue during long-term work.
• Strict concentricity control of the spindle, with runout tolerance controlled within 0.05mm, perfectly compatible with our brand's full series of HSS and TCT annular cutters, twist drills and tapping accessories, ensuring the best working performance of the tools.

4. Ultra-Lightweight & Portable Design, Strong Environmental Adaptability

• The DS13/DS16 series has an ultra-compact body structure, with a net weight of only 10-10.5kg, and the heavy-duty DS60 series weighs only 18kg. All models are equipped with an integrated ergonomic carrying handle, easy to carry and move, especially suitable for on-site construction and high-altitude operations where large fixed drilling equipment cannot be used.
• IP44 protection grade, dustproof and splash-proof, can adapt to harsh working environments such as construction sites, workshops, shipyards, bridge sites and petrochemical plants, with super strong environmental adaptability.
• Long working stroke and adjustable stroke design, easily meet the needs of deep-hole drilling, large workpiece processing and special working conditions, greatly expanding the application range of the equipment.

5. Multi-Function & Wide Compatibility, One Machine for Multiple Purposes

• Universally compatible with standard drill chucks and Weldon shank tools, including twist drills, HSS/TCT annular cutters (hollow core drill bits), tapping chucks & taps, reamers, countersinks, etc. It can meet various processing needs such as drilling, coring, reaming, countersinking, hole expanding and tapping, realizing multi-function of one machine, reducing your equipment procurement cost.
• All models are equipped with a complete built-in internal cooling system, including a large-capacity coolant tank, corrosion-resistant flexible hose and precision nozzle. It can continuously deliver cutting fluid to the cutting edge during operation, effectively reducing the cutting temperature, reducing tool wear, and greatly extending the service life of drilling and tapping tools.

6. Humanized Safety Design, Reliable Long-Term Operation

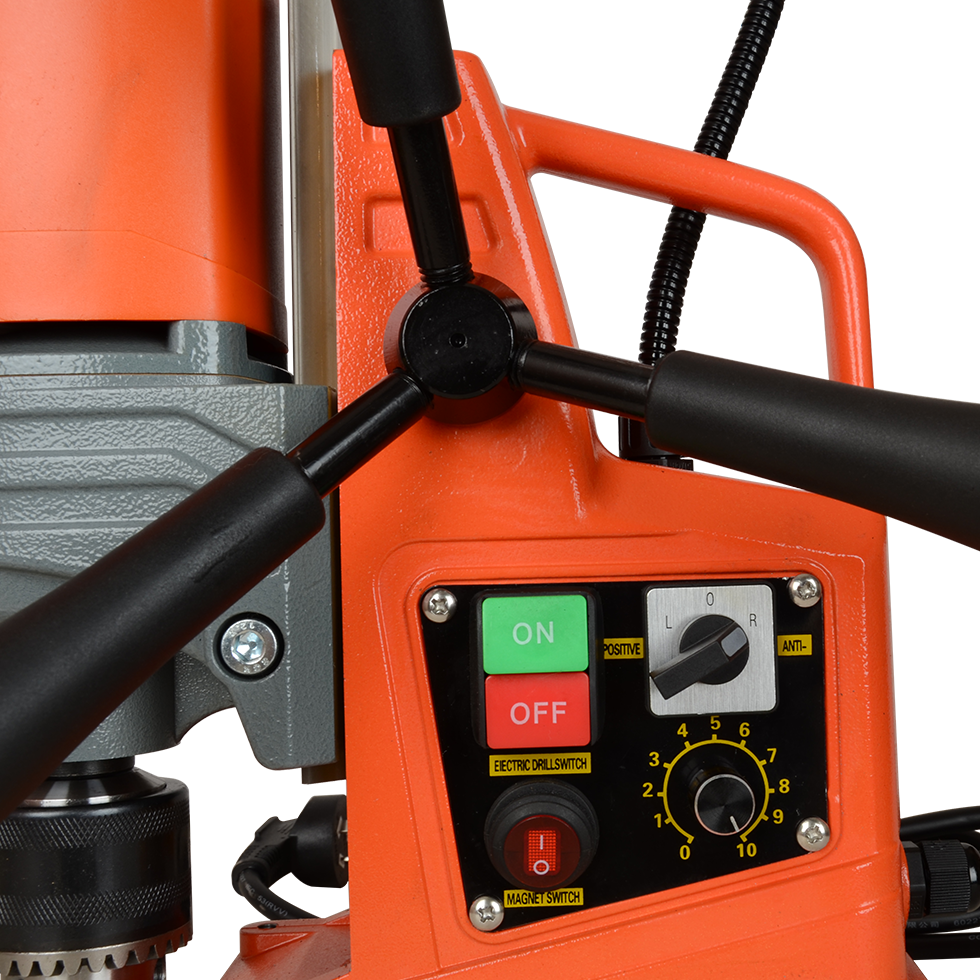

• Independent dual control switches: separate magnetic base switch and motor start/stop switch, with clear identification and anti-misoperation interlock design, ensuring that the motor can only be started after the magnetic base is firmly adsorbed, avoiding safety accidents caused by misoperation.
• The whole machine adopts insulated shell and non-slip insulated handle, which effectively prevents electric shock and ensures the safety of operators in complex working environments.
• Thickened high-strength engineering plastic protective cover, impact resistance and corrosion resistance, protecting the internal motor and circuit structure, ensuring stable operation of the equipment in harsh environments and extending the service life.

Wide Application Scenarios

This DS series industrial magnetic drill press is widely used in global metalworking, construction, maintenance and manufacturing fields, including but not limited to:

• Steel structure fabrication, steel beam and steel plate drilling, tapping and processing
• Bridge, highway, railway, stadium and other infrastructure on-site construction
• Shipbuilding, ship maintenance, port equipment and offshore engineering operations
• Mechanical equipment manufacturing, installation, overhaul and on-site maintenance
• Pipeline installation, HVAC engineering, power plant and petrochemical equipment maintenance
• Automobile manufacturing, heavy truck, engineering machinery modification and maintenance
• Sheet metal processing, chassis and cabinet hole making, metal product fabrication
• Hardware processing, mold manufacturing, precision machinery parts drilling and tapping

Packaging, Customization & After-Sales Service

Export-Standard Secure Packaging

• Each DS series magnetic drill is packed in a high-density shockproof foam lining, with a thickened export corrugated carton outer packaging (customized fumigation-free wooden case is optional), which is moisture-proof, compression-resistant and impact-resistant, suitable for long-distance international sea freight, air freight and express delivery, ensuring the product arrives in perfect condition.
• The standard package includes: 1 × DS Series Magnetic Drill Main Unit, 1 × Drill Chuck (matched to the model), 1 × Coolant Tank & Hose Assembly, 1 × Professional Tool Kit, 1 × Multi-Language Product Instruction Manual.

Customization Service

We provide full OEM/ODM customization services for global customers, including:

• Customized voltage (110V/220V/240V) according to different national standards
• Customized brand logo printing on the machine body and packaging
• Customized color of the machine body
• Customized accessory kits according to customer needs
• Customized technical parameters for special working conditions

After-Sales & Technical Support

• All our products have passed strict full-item quality inspection before delivery, with a 12-month warranty period for the whole machine (excluding wearing parts).
• We have a professional technical support team to provide 7×24 hours online after-sales service, to solve any product use and technical problems for customers in a timely manner.
• We provide complete product information, including operation videos, maintenance manuals and full spare parts supply, to fully support your business development.

Safety Operation Tips

1. Before operation, please ensure that the magnetic base is firmly adsorbed on a clean, flat and rust-free steel workpiece surface. It is forbidden to start drilling or tapping when the magnetic base is not fully adsorbed.
2. Please wear professional protective equipment during operation, including safety goggles, work gloves and anti-slip safety shoes, to avoid injury from iron chips and splashing coolant.
3. It is strictly forbidden to overload the equipment. Please select the appropriate model and tool according to the workpiece material, aperture size and processing needs, and control the reasonable feed speed and rotation speed.
4. Please use professional metal cutting fluid during drilling and tapping operations, which can effectively extend the service life of the tools and improve the processing quality.
5. Before maintenance and replacement of accessories, please disconnect the power supply and release the magnetic base suction to ensure operation safety.
