Product Overview

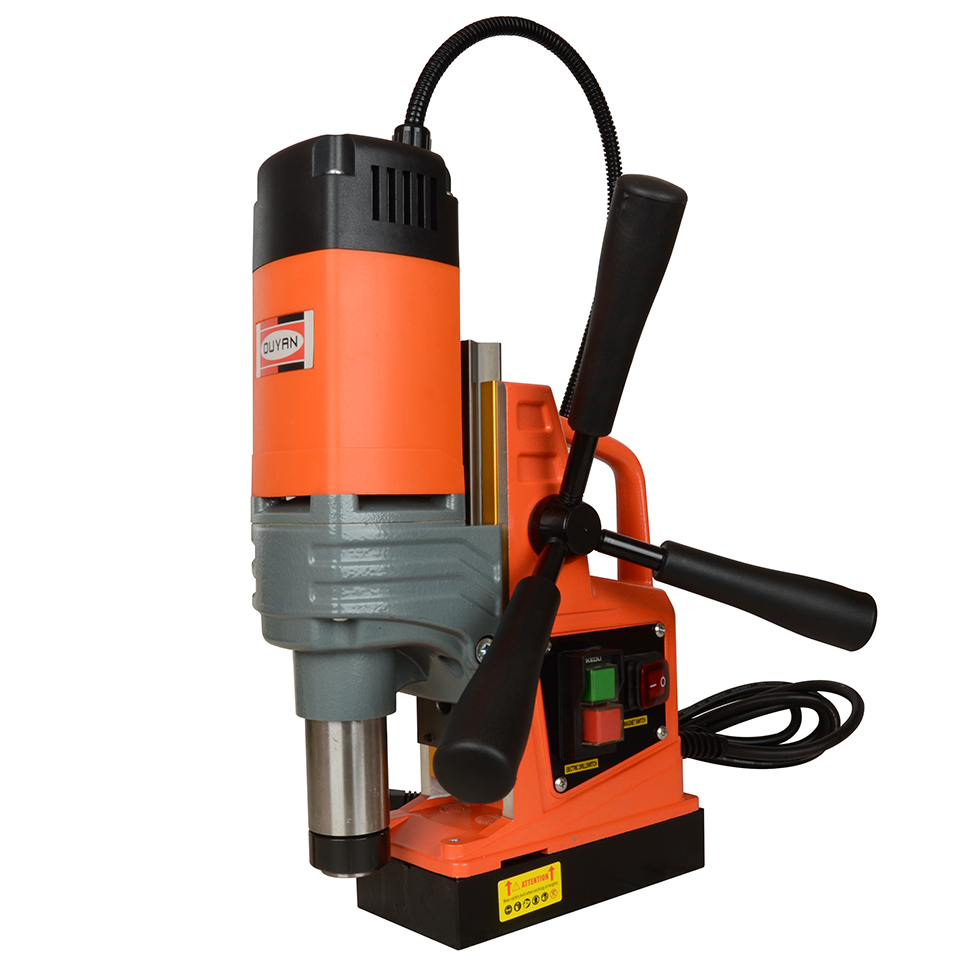

The DASHUO 8860 & 8860E Magnetic Drill Press (also known as magnetic core drill, portable mag drill, electric magnetic drilling machine, annular cutter drill, steel plate drill, heavy-duty magnetic drill) is a professional industrial-grade metal drilling equipment, specially engineered for heavy-load, high-precision hole making in steel and metal working scenarios.

The 8860 is the standard industrial model, while the 8860E is the upgraded electronic variable speed version. Both are powered by a heavy-duty 1800W full-copper motor, paired with a 15000N super-strong rare-earth permanent magnetic base, delivering stable high-torque drilling performance with a maximum boring diameter of 60mm (for annular cutters). With an industry-leading 225mm working stroke and 320mm adjustable stroke, it easily adapts to deep-hole drilling and large workpiece processing. Its compact, portable design makes it perfectly suitable for both fixed workshop heavy machining and on-site field operations, including heavy steel structure fabrication, bridge construction, shipbuilding, heavy equipment installation and overhaul. It is universally compatible with standard Weldon shank annular cutters, twist drills and other accessories, making it a core high-performance tool for professional metalworking teams worldwide.

Core Advantages & Detailed Product Features

1. 1800W Heavy-Duty Full-Copper Motor, High Torque & Overload Resistance

• Equipped with an industrial-grade 1800W pure copper winding motor, featuring high power density, super strong overload resistance and excellent thermal stability. It maintains stable and continuous power output even under long-term heavy-load drilling operations, effectively avoiding motor burnout caused by high temperature, and perfectly adapts to continuous work in harsh industrial environments.
• Optimized low-speed and high-torque design, perfectly matched with the cutting characteristics of HSS/TCT annular cutters. It delivers 3x higher drilling efficiency than ordinary light-duty magnetic drills, greatly reducing single-hole processing time and improving heavy-duty work efficiency.
• The 8860E upgraded model is equipped with a precision electronic stepless speed regulation system (0-600 RPM), which can freely adjust the optimal rotation speed according to the workpiece material, drill bit type and aperture size, achieving the best cutting effect, extending tool life and improving hole quality.
• Built-in overheat, overcurrent and overload triple protection system, which automatically cuts off the power when the motor is overloaded or overheated, protecting the equipment from damage and extending the service life of the whole machine.

2. 15000N Super-Strong Rare-Earth Permanent Magnetic Base, Ultra-Stable & Safe

• Adopts high-performance NdFeB rare-earth permanent magnet, with a maximum suction force of up to 15000N. It provides super-strong and stable adsorption on steel workpieces, ensuring no slipping, no displacement during high-load heavy drilling operations, and can work stably in vertical, horizontal and even overhead upside-down working conditions.
• The bottom surface of the magnetic base is precision ground with ultra-high flatness, which can be closely attached to the workpiece surface, ensuring maximum adsorption force and drilling stability even on slightly uneven steel plates.
• Independent magnetic base control switch, with clear identification and anti-misoperation design. The magnetic base maintains strong suction even in case of sudden power failure, effectively preventing the equipment from falling, which greatly improves the safety of on-site and high-altitude operations.

3. Industry-Leading Long Stroke Design, Wide Processing Adaptability

• With an effective working stroke of up to 225mm and a maximum adjustable stroke of 320mm, it easily meets the needs of deep-hole drilling, large workpiece processing and special working conditions that cannot be achieved by ordinary short-stroke magnetic drills, greatly expanding the application range of the equipment.
• The adjustable stroke design allows flexible adjustment of the working height according to the thickness of the workpiece and the length of the drill bit, ensuring the best feed position and drilling stability, and adapting to more complex processing scenarios.

4. Precision Feed Structure, Ultra-High Drilling Accuracy

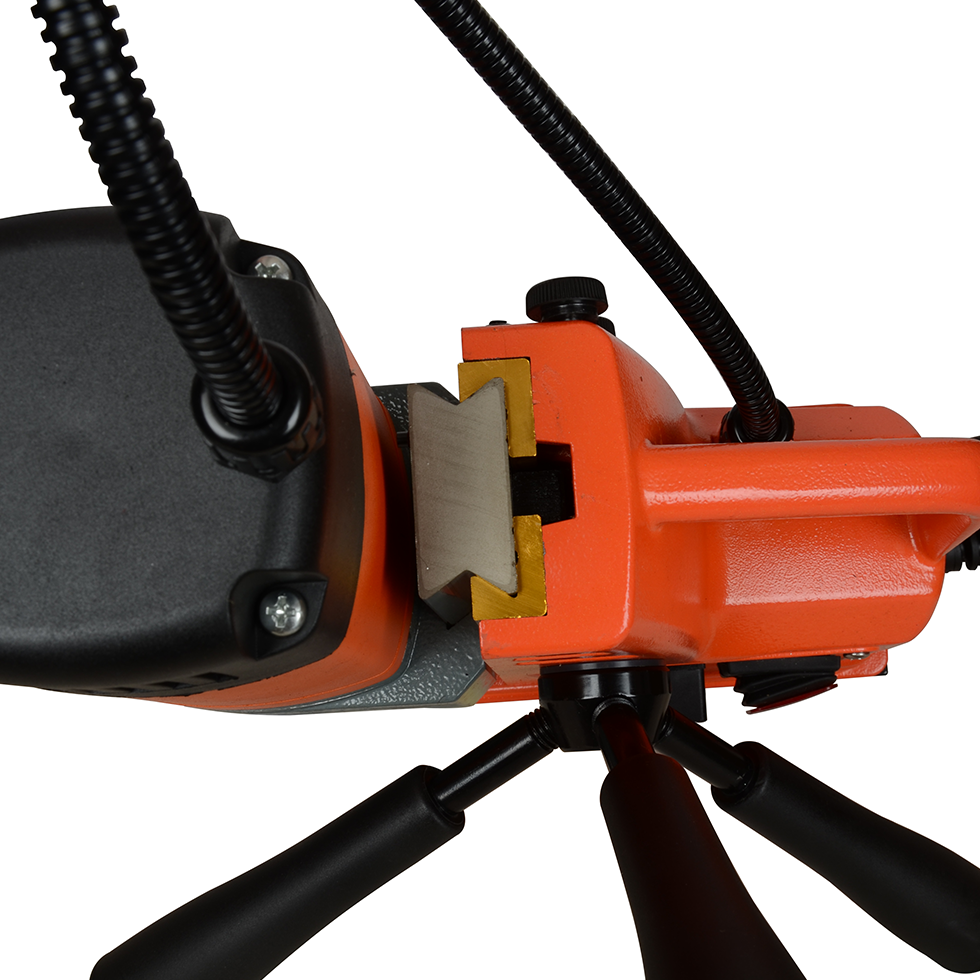

• Adopts high-precision dovetail guide rail structure, after overall quenching and precision grinding treatment, with small clearance, super wear resistance and ultra-smooth feed. It ensures excellent concentricity during the whole drilling process, completely avoiding hole deviation and aperture error, meeting the high-precision machining requirements of heavy industrial scenarios.
• Ergonomic three-handle feed design, with non-slip insulated rubber handles, comfortable grip, labor-saving operation, and precise control of micro feed speed, which can be easily operated by a single person, reducing operator fatigue during long-term heavy work.
• Strict concentricity control of the spindle, with runout tolerance controlled within 0.03mm, perfectly compatible with our brand's full series of HSS and TCT annular cutters, ensuring the best cutting performance of the tools and the highest quality of the finished holes.

5. Built-in High-Efficiency Cooling System, Extended Tool Life

• Equipped with a complete internal cooling system, including a large-capacity coolant tank, corrosion-resistant flexible hose and precision nozzle. It can continuously deliver cutting fluid to the cutting edge of the drill bit during the drilling process, effectively reducing the cutting temperature, reducing tool wear, and greatly extending the service life of annular cutters and other drilling tools.
• The cooling system is designed with anti-clogging and anti-leakage structure, which is easy to add coolant and clean, suitable for long-term continuous operation in harsh industrial environments such as construction sites, shipyards and heavy machinery workshops.

6. Portable & Durable Design, Multi-Function & Wide Application

• Compact heavy-duty body structure, with a net weight of only 18kg, equipped with an integrated ergonomic carrying handle, easy to carry and move, especially suitable for on-site construction and high-altitude operations where large fixed drilling equipment cannot be used.
• IP44 protection grade, dustproof and splash-proof, can adapt to harsh working environments such as heavy industry workshops, construction sites, shipyards, bridge sites and petrochemical plants, with super strong environmental adaptability.
• Universally compatible with standard 3/4" (19.05mm) Weldon shank tools, including HSS/TCT annular cutters, twist drills, reamers, countersinks, etc. It can meet various processing needs such as drilling, reaming, countersinking and hole expanding, realizing multi-function of one machine.

7. Humanized Safety Design, Reliable Long-Term Operation

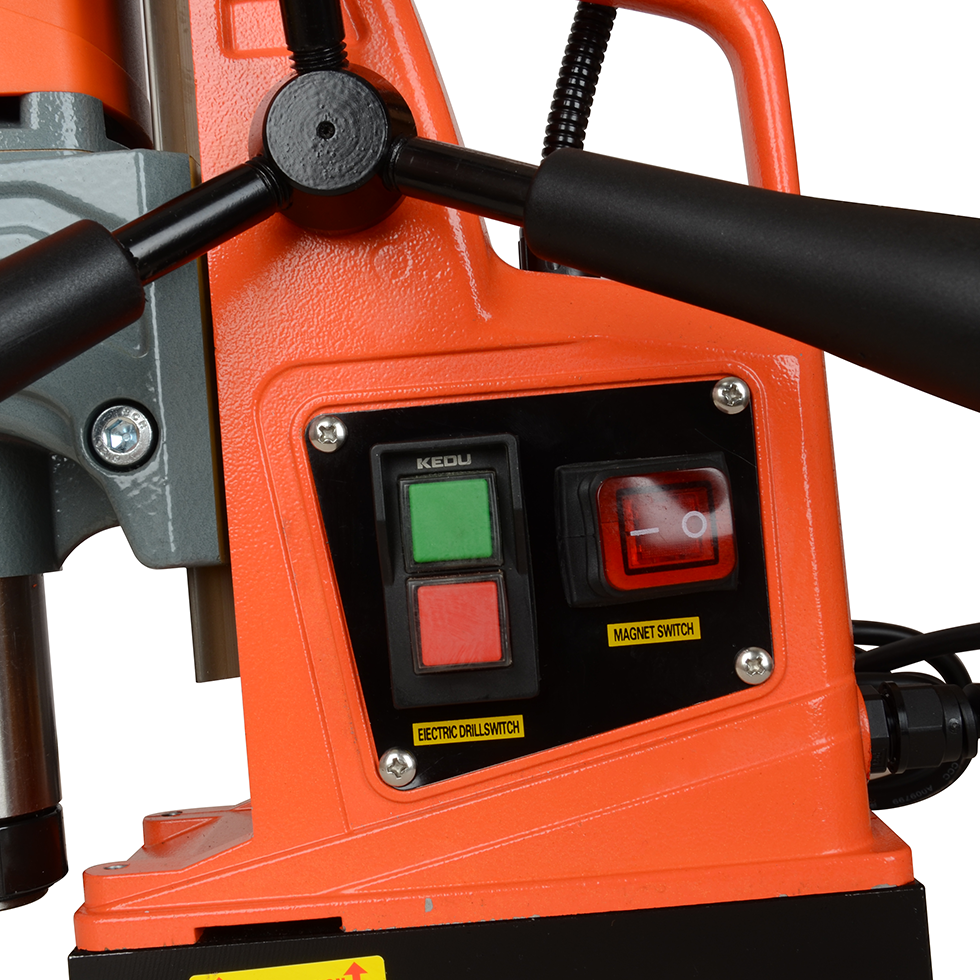

• Independent dual control switches: separate magnetic base switch and motor start/stop switch, with clear identification and anti-misoperation interlock design, ensuring that the motor can only be started after the magnetic base is firmly adsorbed, avoiding safety accidents caused by misoperation.
• The whole machine adopts insulated shell and non-slip insulated handle, which effectively prevents electric shock and ensures the safety of operators in complex working environments.
• Thickened high-strength engineering plastic protective cover, impact resistance and corrosion resistance, protecting the internal motor and circuit structure, ensuring stable operation of the equipment in harsh environments and extending the service life.

Wide Application Scenarios

This 8860/8860E heavy-duty industrial magnetic drill press is widely used in global heavy metalworking, large-scale construction, industrial maintenance and manufacturing fields, including but not limited to:

• Heavy steel structure fabrication, steel beam and thick steel plate drilling and processing
• Large bridge, highway, railway, stadium and other infrastructure on-site construction
• Shipbuilding, ship heavy maintenance, port equipment and offshore engineering operations
• Heavy mechanical equipment manufacturing, installation, overhaul and on-site maintenance
• Pipeline installation, HVAC engineering, power plant and petrochemical heavy equipment maintenance
• Heavy truck, engineering machinery manufacturing, modification and maintenance
• Heavy sheet metal processing, large chassis and cabinet hole making, metal product fabrication

Packaging, Customization & After-Sales Service

Export-Standard Secure Packaging

• Each 8860/8860E magnetic drill is packed in a high-density shockproof foam lining, with a thickened export corrugated carton outer packaging (customized fumigation-free wooden case is optional), which is moisture-proof, compression-resistant and impact-resistant, suitable for long-distance international sea freight, air freight and express delivery, ensuring the product arrives in perfect condition.

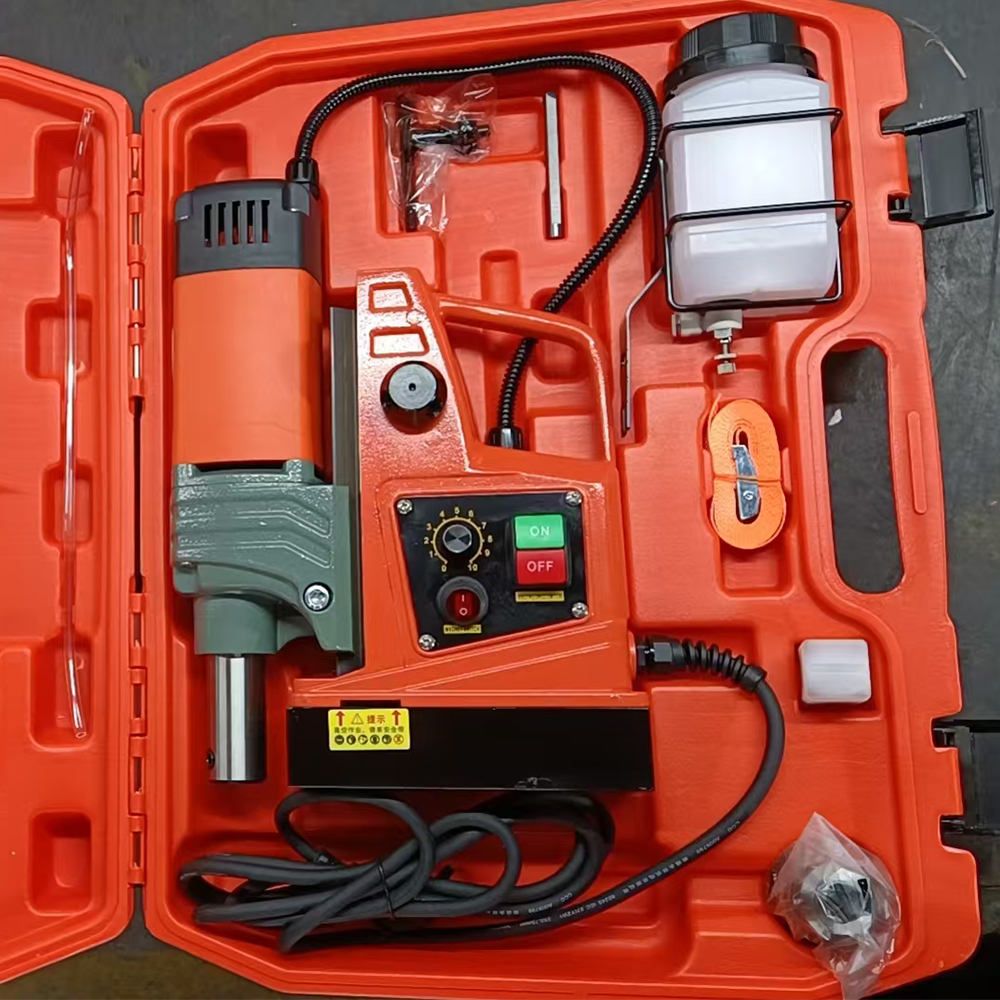

• The standard package includes: 1 × 8860/8860E Magnetic Drill Main Unit, 1 × Coolant Tank & Hose Assembly, 1 × Professional Tool Kit, 1 × Multi-Language Product Instruction Manual.

Customization Service

We provide full OEM/ODM customization services for global customers, including:

• Customized voltage (110V/220V/240V) according to different national standards
• Customized brand logo printing on the machine body and packaging
• Customized color of the machine body
• Customized accessory kits according to customer needs
• Customized technical parameters for special working conditions

After-Sales & Technical Support

• All our products have passed strict full-item quality inspection before delivery, with a 12-month warranty period for the whole machine (excluding wearing parts).
• We have a professional technical support team to provide 7×24 hours online after-sales service, to solve any product use and technical problems for customers in a timely manner.
• We provide complete product information, including operation videos, maintenance manuals and full spare parts supply, to fully support your business development.

Safety Operation Tips

1. Before operation, please ensure that the magnetic base is firmly adsorbed on a clean, flat and rust-free steel workpiece surface. It is forbidden to start drilling when the magnetic base is not fully adsorbed.
2. Please wear professional protective equipment during operation, including safety goggles, work gloves and anti-slip safety shoes, to avoid injury from iron chips and splashing coolant.
3. It is strictly forbidden to overload the equipment. Please select the appropriate drill bit and control the reasonable feed speed according to the material and aperture of the workpiece. For the 8860E model, please adjust the appropriate rotation speed according to the processing material.
4. Please use professional metal cutting fluid during drilling, which can effectively extend the service life of the drill bit and improve the hole quality.
5. Before maintenance and replacement of accessories, please disconnect the power supply and release the magnetic base suction to ensure operation safety.
